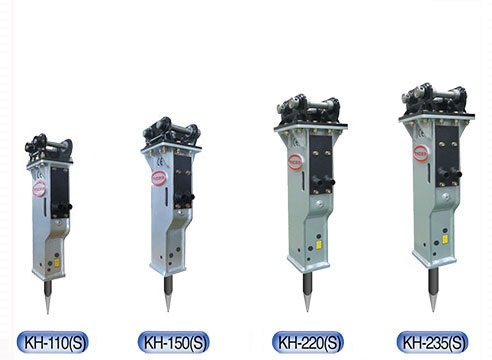

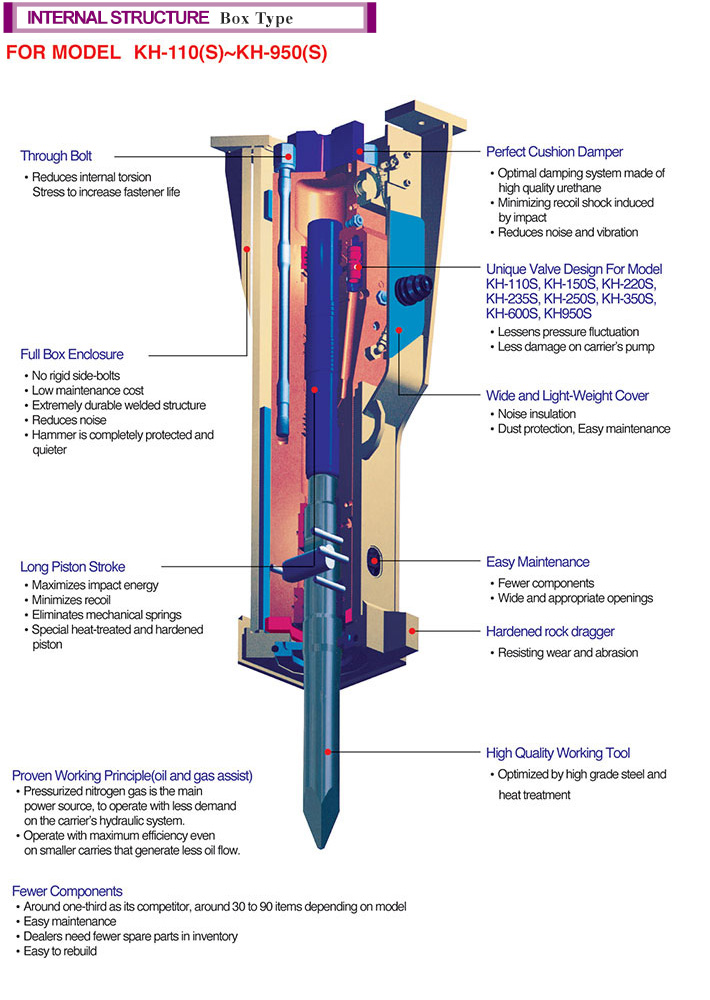

| ITEM | KH110 | KH150 | KH220 | KH235 | ||
|---|---|---|---|---|---|---|
|
WORKING WEIGHT (INCLUDING ROD & BRACKET PIN)
|

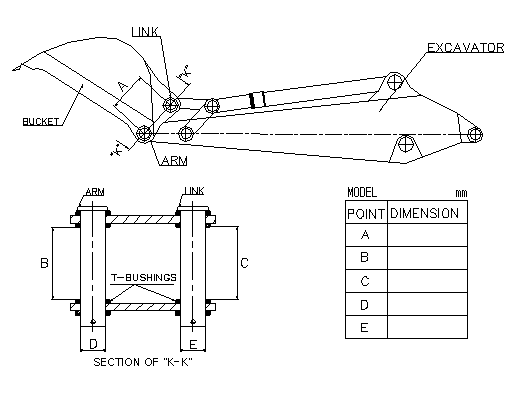

BOX TYPE | kg | 110 | 160 | 185 | 262 |
| BOX TYPE | lb | 242 | 352 | 407 | 576 | |
| TOP TYPE | kg | 100 | 155 | 180 | 250 | |
| TOP TYPE | lb | 220 | 342 | 412 | 551 | |
| SIDE TYPE | kg | 95 | 145 | 169 | 250 | |
| SIDE TYPE | lb | 209 | 320 | 373 | 551 | |
| OVERALL LENGTH | BOX TYPE | mm | 1,134 | 1,280 | 1,400 | 1,480 |
| TOP TYPE | mm | 1,134 | 1,300 | 1,400 | 1,500 | |
| SIDE TYPE | mm | 947 | 1,072 | 1,170 | 1,260 | |
| CAREER MINIMUM | kg/㎠ | 150 | 150 | 160 | 170 | |
| PRESSURE | psi | 2,175 | 2,175 | 2,320 | 2,465 | |
| MIN. OPERATING PRESSURE | kg/㎠/psi | 80/1,138 | 80/1,138 | 90/1,280 | 95/1,351 | |
| MAX. OPERATING PRESSURE | kg/㎠/psi | 110/1,565 | 110/1,565 | 120/1,706 | 130/1,849 | |
| MIN. OIL FLOW | lpm/gpm | 15/3.96 | 20/5.3 | 25/6.6 | 30/7.9 | |
| MAX. OIL FLOW | lpm/gpm | 25/6.6 | 30/7.9 | 40/10.5 | 45/11.9 | |
| NUMBER OF BLOW | bpm | 800-1,200 | 600-1,000 | 550-950 | 500-900 | |
| N2 GAS CHARG'G | BACK HEAD | kg/㎠ | 17 | 17 | 17 | 17 |
| PRESSURE | ACC' | kg/㎠ | - | - | - | - |
| HOSE DIAMETER | inch | 1/2 | 1/2 | 1/2 | 1/2 | |
| CHISEL | DIAMETER | mm | 40 | 45 | 53 | 58 |
| LENGTH | mm | 425 | 500 | 580 | 630 | |
| WEIGHT | kg | 3.7 | 5.5 | 8.6 | 12 | |
| APPLICABLE | ton | 0.5-2.0 | 1.0-3.0 | 2.0-4.0 | 3.0-5.5 | |
| CARRIER | ||||||

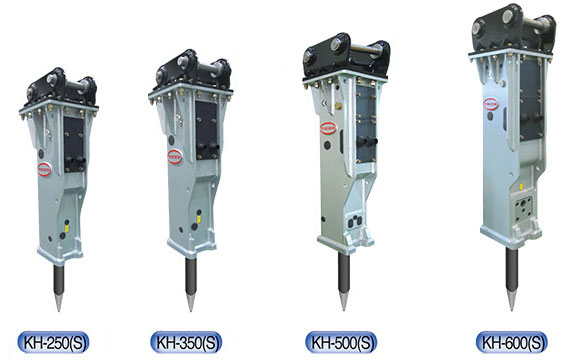

| ITEM | KH250 | KH350 | KH500 | KH600 | ||
|---|---|---|---|---|---|---|
|
WORKING WEIGHT (INCLUDING ROD & BRACKET PIN)
|
BOX TYPE | kg | 344 | 433 | 677 | 942 |
| BOX TYPE | lb | 757 | 953 | 1490 | 2072 | |
| TOP TYPE | kg | 310 | 410 | 605 | 860 | |
| TOP TYPE | lb | 683 | 904 | 1,334 | 1,896 | |
| SIDE TYPE | kg | 279 | 385 | 523 | 769 | |
| SIDE TYPE | lb | 615 | 849 | 1,153 | 1,695 | |
| OVERALL LENGTH | BOX TYPE | mm | 1,625 | 1,713 | 2,120 | 2,400 |
| TOP TYPE | mm | 1,621 | 1,712 | 2,149 | 2,395 | |
| SIDE TYPE | mm | 1,336 | 1,434 | 1,737 | 1,985 | |
| CAREER MINIMUM | kg/㎠ | 170 | 170 | 190 | 210 | |
| PRESSURE | psi | 2,465 | 2,465 | 2,755 | 3,045 | |
| MIN. OPERATING PRESSURE | kg/㎠/psi | 95/1,351 | 100/1,422 | 130/1,849 | 150/2,133 | |
| MAX. OPERATING PRESSURE | kg/㎠/psi | 130/1,849 | 130/1,849 | 150/2,133 | 170/2,417 | |
| MIN. OIL FLOW | lpm/gpm | 30/7.9 | 40/10.6 | 45/11.9 | 80/21.1 | |
| MAX. OIL FLOW | lpm/gpm | 45/11.9 | 80/21.1 | 85/22.5 | 110/29.1 | |
| NUMBER OF BLOW | bpm | 450-750 | 450-950 | 400-800 | 450-630 | |
| N2 GAS CHARG'G | BACK HEAD | kg/㎠ | 17 | 17 | 17 | 17 |
| PRESSURE | ACC' | kg/㎠ | - | - | - | - |
| HOSE DIAMETER | inch | 1/2 | 1/2 | 3/4 | 3/4 | |
| CHISEL | DIAMETER | mm | 68 | 75 | 85 | 100 |
| LENGTH | mm | 700 | 750 | 800 | 1,050 | |
| WEIGHT | kg | 17.5 | 22.5 | 31.5 | 57 | |
| APPLICABLE | ton | 4.0-7.0 | 5.0-10.0 | 8.0-12.0 | 11.0-16.0 | |
| CARRIER | ||||||

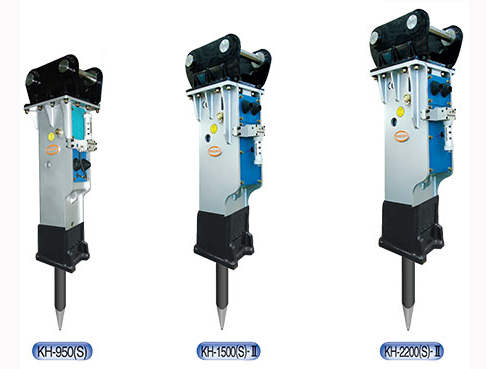

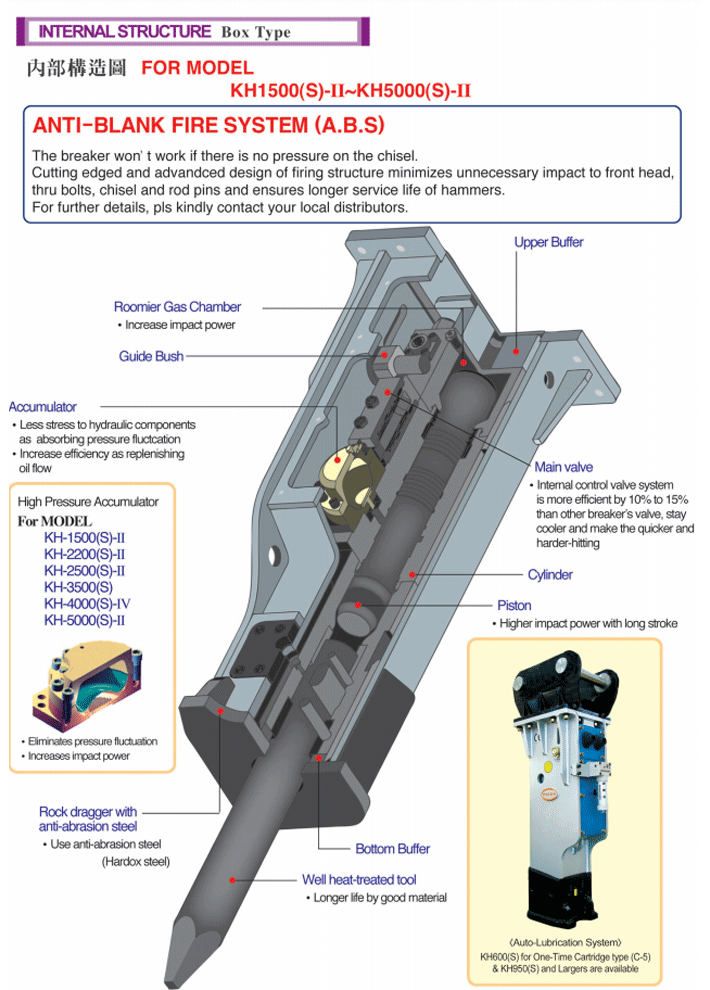

| ITEM | KH950 | KH1500-V | KH1500-Ⅱ | KH1600 |
KH2200-Ⅱ |
||
|---|---|---|---|---|---|---|---|
|
WORKING WEIGHT (INCLUDING ROD & BRACKET PIN)
|
BOX TYPE | kg | 1,500 | 1,827 | 1,780 | 1,960 |
2,320 |
| BOX TYPE | lb | 3,300 | 4,028 | 3,916 | 4,321 |
5,104 |
|
| TOP TYPE | kg | 1,505 | 1,845 | 1,820 | 2,026 |
2,410 |
|
| TOP TYPE | lb | 3,318 | 4,067 | 4,012 | 4,466 |
5,313 |
|
| SIDE TYPE | kg | 1,402 | 1,695 | 1,700 | 1,930 |
2,267 |
|
| SIDE TYPE | lb | 3,091 | 3,737 | 3,748 | 4,255 |
4,998 |
|
| OVERALL LENGTH | BOX TYPE | mm | 2,580 | 2,727 | 2,766 | 2,824 |
3,075 |
| TOP TYPE | mm | 2,569 | 2,683 | 2,641 | 2,827 |
2,928 |
|
| SIDE TYPE | mm | 2,144 | 2,271 | 2,229 | 2,414 |
2,502 |
|
| CAREER MINIMUM | kg/㎠ | 210 | 220 | 220 | 220 |
220 |
|
| PRESSURE | psi | 3,045 | 3,190 | 3,190 | 3,190 |
3,190 |
|
| MIN. OPERATING PRESSURE | kg/㎠/psi | 150/2133 | 160/2,275 | 160/2,275 | 160/2,275 |
160/2,275 |
|
| MAX. OPERATING PRESSURE | kg/㎠/psi | 170/2417 | 180/2,560 | 180/2,560 | 180/2,560 |
180/2,560 |
|
| MIN. OIL FLOW | lpm/gpm | 90/23.8 | 100/26.4 | 125/33 | 125/33 |
160/42.3 |
|
| MAX. OIL FLOW | lpm/gpm | 120/31.7 | 150/39.6 | 150/39.6 | 150/39.6 |
190/50.2 |
|
| NUMBER OF BLOW | bpm | 400-530 | 350-600 | 400-800 | 400-490 |
350-750 |
|
| N2 GAS CHARG'G | BACK HEAD | kg/㎠ | 17 | 15 | 6 | 15 | 6 |
| PRESSURE | ACC' | kg/㎠ | - | 60 | 60 | 60 | 60 |
| HOSE DIAMETER | inch | 1 | 1 | 1 | 1 | 1 | |
| CHISEL | DIAMETER | mm | 125 | 135 | 135 | 140 | 150 |
| LENGTH | mm | 1,100 | 1,200 | 1,200 | 1,250 |
1,350 |
|
| WEIGHT | kg | 95 | 121 | 121 | 130 |
166 |
|
| APPLICABLE | ton | 15.0-20. | 18.0-25.0 | 18.0-25.0 | 18.0-26.0 |
28.0-35.0 |
|
| CARRIER | |||||||

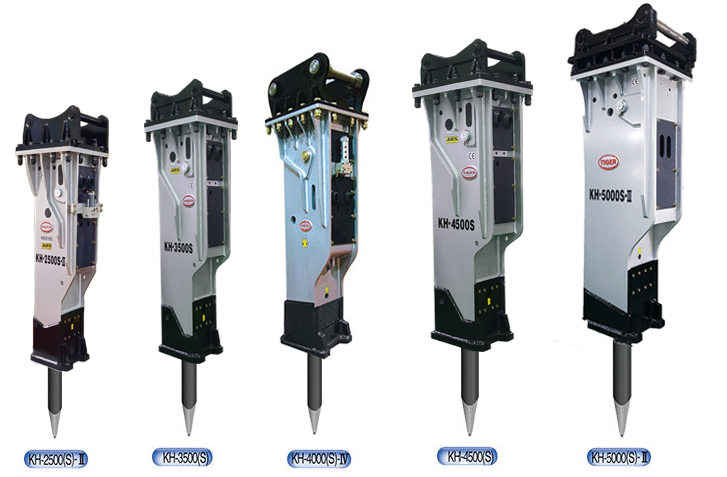

| ITEM | KH2500-Ⅱ | KH3000-Ⅱ | KH3500 | ||
|---|---|---|---|---|---|
|
WORKING WEIGHT (INCLUDING ROD & BRACKET PIN)
|
BOX TYPE | kg | 3,000 | 2,960 | 3,356 |
| BOX TYPE | lb | 6,600 | 6,526 | 7,383 | |
| TOP TYPE | kg | 3,130 | 3,175 | 3,356 | |
| TOP TYPE | lb | 6,900 | 7,000 | 7,383 | |
| SIDE TYPE | kg | 2,890 | 2,935 | - | |
| SIDE TYPE | lb | 6,371 | 6,470 | - | |
| OVERALL LENGTH | BOX TYPE | mm | 3,330 | 3,310 | 3,250 |
| TOP TYPE | mm | 3,241 | 3,320 | 3,500 | |
| SIDE TYPE | mm | 2,697 | 2,771 | - | |
| CAREER MINIMUM | kg/㎠ | 220 | 220 | 220 | |
| PRESSURE | psi | 3,190 | 3,190 | 3,190 | |
| MIN. OPERATING PRESSURE | kg/㎠/psi | 160/2,275 | 160/2,275 | 160/2,275 | |
| MAX. OPERATING PRESSURE | kg/㎠/psi | 180/2,560 | 180/2,560 | 180/2,560 | |
| MIN. OIL FLOW | lpm/gpm | 190/50.2 | 190/50.2 | 210/55.5 | |
| MAX. OIL FLOW | lpm/gpm | 250/66.1 | 250/66.1 | 290/76.7 | |
| NUMBER OF BLOW | bpm | 300-600 | 300-550 | 300-550 | |
| N2 GAS CHARG'G | BACK HEAD | kg/㎠ | 17 | 9 | 11 |
| PRESSURE | ACC' | kg/㎠ | 60 | 60 | 60 |
| HOSE DIAMETER | inch | 1-1/4 | 1-1/4 | 1-1/4 | |
| CHISEL | DIAMETER | mm | 155 | 160 | 168 |
| LENGTH | mm | 1,400 | 1,450 | 1,450 | |
| WEIGHT | kg | 182 | 207 | 220 | |
| APPLICABLE | ton | 35.0-40.0 | 40.0-45.0 | 42.0-49.0 | |
| CARRIER | |||||
| ITEM | KH4000-Ⅳ | KH4500 | KH5000-II | ||
|
WORKING WEIGHT (INCLUDING ROD & BRACKET PIN)
|
BOX TYPE | kg | 4,030 | 4,600 | 5,620 |
| BOX TYPE | lb | 8,866 | 10,230 | 12,320 | |
| TOP TYPE | kg | 4,030 | 4,745 | 5,776 | |
| TOP TYPE | lb | 8,866 | 10,460 | 12,734 | |
| SIDE TYPE | kg | 4,030 | - | - | |
| SIDE TYPE | lb | 8,866 | - | - | |
| OVERALL LENGTH | BOX TYPE | mm | 3,711 | 3,726 | 3,902 |
| TOP TYPE | mm | 3,730 | 3,696 | 3,670 | |
| SIDE TYPE | mm | 3,181 | - | - | |
| CAREER MINIMUM | kg/㎠ | 220 | 220 | 220 | |
| PRESSURE | psi | 3,190 | 3,190 | 3,190 | |
| MIN. OPERATING PRESSURE | kg/㎠/psi | 160/2,275 | 160/2,275 | 160/2,275 | |
| MAX. OPERATING PRESSURE | kg/㎠/psi | 180/2,560 | 180/2,560 | 180/2,560 | |
| MIN. OIL FLOW | lpm/gpm | 210/55.5 | 250/66.0 | 210/55.5 | |
| MAX. OIL FLOW | lpm/gpm | 290/76.7 | 340/89.8 | 300/79.2 | |
| NUMBER OF BLOW | bpm | 200-350 | 250-500 | 310-450 | |
| N2 GAS CHARG'G | BACK HEAD | kg/㎠ | 15 | 11 | 11 |
| PRESSURE | ACC' | kg/㎠ | 60 | 60 | 60 |
| HOSE DIAMETER | inch | 1-1/4 | 1-1/4 | 1-1/4 | |
| CHISEL | DIAMETER | mm | 175 | 180 | 190 |
| LENGTH | mm | 1,600 | 1,600 | 1,700 | |
| WEIGHT | kg | 268 | 277 | 330 | |
| APPLICABLE | ton | 50.0-55.0 | 50.0-60.0 | 55.0-65.0 | |
| CARRIER | |||||
