Hyd.Breakers Chisels/Tools

1. Various shapes of tools

Shape Tool
Conical Point
Moil Point
/Pyramidal Point
Asphalt cutter
Ramming tool
/Beam cap
Shape Tool
Chisel/Wedge
(Horizontal)
Chisel/Wedge
(Vertical)
Blunt End

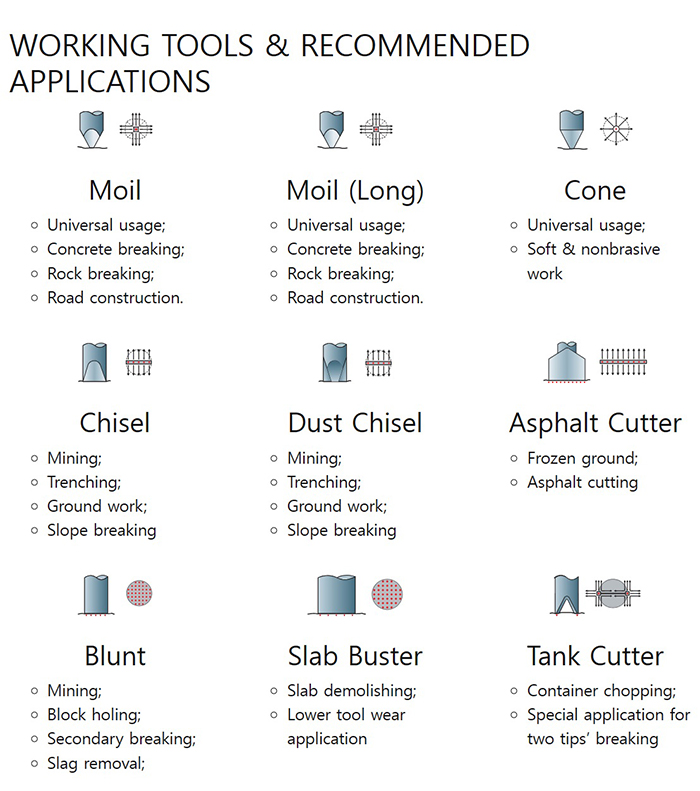

2. The right tool for each jobs

No Tool Application
1) Conical point For all demolition work, i.e. masonry, concrete etc
2) Moil point
/Pyramidal point
On special hard rock or reinforced concrete, this tool is most used and is generally suitable for splitting. however, it can not break an object into pieces at a blow as a blunt tool does. Further, as it may slip during hammering, hammering must be performed with the point stabilized.
3) Chisel / Wedge For all demolition work with additional cutting work. It is generally used for civil engineering work and it is also suitable for splitting and used for breaking flat rocks.
4) Blunt end On rocks other than excessively hard rocks, this tool is most used. As the end is flat / blunt, locating the tool on an object to be broken is easier and the the tool seldom slips during hammering.
5) Asphalt cutter General use with additional cutting section cutting asphalt or soft material
6) Ramming tool
/Beam cap
Beating in poles and pipes produced according to request

3. Hammer manufacturers

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
550 45 5 CONICAL
CHISEL
PYRAMID
BLUNT
510 50 6 CONICAL
CHISEL
PYRAMID
BLUNT
600 65 14 CONICAL
CHISEL
PYRAMID
BLUNT
700 65 16 CONICAL
CHISEL
PYRAMID
BLUNT
775 80 27 CONICAL
CHISEL
PYRAMID
BLUNT
840 95 43 CONICAL
CHISEL
PYRAMID
BLUNT
900 104 60 CONICAL
CHISEL
PYRAMID
BLUNT
1000 125 95 CONICAL
CHISEL
PYRAMID
BLUNT
1100 134 115 CONICAL
CHISEL
PYRAMID
BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
500 55 9 CONICAL
CHISEL
PYRAMID
BLUNT
510 70 13 CONICAL
CHISEL
PYRAMID
BLUNT
800 94 40 CONICAL
CHISEL
PYRAMID
BLUNT
935 104 48 CONICAL
CHISEL
PYRAMID
BLUNT
1220 139 128 CONICAL
CHISEL
PYRAMID
BLUNT
455 45 4 CONICAL
CHISEL
PYRAMID
BLUNT
540 60 9 CONICAL
CHISEL
PYRAMID
BLUNT
640 75 19 CONICAL
CHISEL
PYRAMID
BLUNT
800 90 34 CONICAL
CHISEL
PYRAMID
BLUNT
970 104 54 CONICAL
CHISEL
PYRAMID
BLUNT
1000 120 78 CONICAL
CHISEL
PYRAMID
BLUNT
1200 135 118 CONICAL
CHISEL
PYRAMID
BLUNT
1300 150 165 CONICAL
CHISEL
PYRAMID
BLUNT
1400 160 200 CONICAL
CHISEL
PYRAMID
BLUNT
1500 180 270 CONICAL
CHISEL
PYRAMID
BLUNT
540 60 9 CONICAL
CHISEL
PYRAMID
BLUNT
610 68 16 CONICAL
CHISEL
PYRAMID
BLUNT
720 75 20 CONICAL
CHISEL
PYRAMID
BLUNT
800 90 33 CONICAL
CHISEL
PYRAMID
BLUNT
1100 105 66 CONICAL
CHISEL
PYRAMID
BLUNT
1180 120 90 CONICAL
CHISEL
PYRAMID
BLUNT
1200 135 117 CONICAL
CHISEL
PYRAMID
BLUNT
1300 150 160 CONICAL
CHISEL
PYRAMID
BLUNT
1450 165 234 CONICAL
CHISEL
PYRAMID
BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
600 64 13 CONICAL
CHISEL
PYRAMID
BLUNT
680 79 23 CONICAL
CHISEL
PYRAMID
BLUNT
760 89 35 CONICAL
CHISEL
PYRAMID
BLUNT
900 109 67 CONICAL
CHISEL
PYRAMID
BLUNT
1000 119 86 CONICAL
CHISEL
PYRAMID
BLUNT
450 45 5 CONICAL
CHISEL
PYRAMID
BLUNT
460 48 7 CONICAL
CHISEL
PYRAMID
BLUNT
600 55 10 CONICAL
CHISEL
PYRAMID
BLUNT
650 65 15 CONICAL
CHISEL
PYRAMID
BLUNT
700 80 23 CONICAL
CHISEL
PYRAMID
BLUNT
800 90 34 CONICAL
CHISEL
PYRAMID
BLUNT
1000 114 72 CONICAL
CHISEL
PYRAMID
BLUNT
1100 120 86 CONICAL
CHISEL
PYRAMID
BLUNT
1130 130 101 CONICAL
CHISEL
PYRAMID
BLUNT
1200 140 130 CONICAL
CHISEL
PYRAMID
BLUNT
1170 144 158 CONICAL
CHISEL
PYRAMID
BLUNT
1250 150 155 CONICAL
CHISEL
PYRAMID
BLUNT
1400 160 203 CONICAL
CHISEL
PYRAMID
BLUNT
1500 180 240 CONICAL
CHISEL
PYRAMID
BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
470 42 5 CONICAL
CHISEL
PYRAMID
BLUNT
560 45 7 CONICAL
CHISEL
PYRAMID
BLUNT
590 55 10 CONICAL
CHISEL
PYRAMID
BLUNT
600 62 12 CONICAL
CHISEL
PYRAMID
BLUNT
700 65 16 CONICAL
CHISEL
PYRAMID
BLUNT
800 65 18 CONICAL
CHISEL
PYRAMID
BLUNT
800 75 25 CONICAL
CHISEL
PYRAMID
BLUNT
880 80 30 CONICAL
CHISEL
PYRAMID
BLUNT
900 80 32 CONICAL
CHISEL
PYRAMID
BLUNT
850 80 32 CONICAL
CHISEL
PYRAMID
BLUNT
1000 100 53 CONICAL
CHISEL
PYRAMID
BLUNT
1000 100 59 CONICAL
CHISEL
PYRAMID
BLUNT
1100 115 84 CONICAL
CHISEL
PYRAMID
BLUNT
1080 115 76 CONICAL
CHISEL
PYRAMID
BLUNT
1150 135 115 CONICAL
CHISEL
PYRAMID
BLUNT
1150 135 115 CONICAL
CHISEL
PYRAMID
BLUNT
1070 135 106 CONICAL
CHISEL
PYRAMID
BLUNT
1250 150 173 CONICAL
CHISEL
PYRAMID
BLUNT
1200 150 142 CONICAL
CHISEL
PYRAMID
BLUNT
1300 160 183 CONICAL
CHISEL
PYRAMID
BLUNT
1500 180 270 CONICAL
CHISEL
PYRAMID
BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
500 46 5 CONICAL
CHISEL
PYRAMID
BLUNT
540 60 9 CONICAL
CHISEL
PYRAMID
BLUNT
750 80 24 CONICAL
CHISEL
PYRAMID
BLUNT
1000 95 48 CONICAL
CHISEL
PYRAMID
BLUNT
1000 114 72 CONICAL
CHISEL
PYRAMID
BLUNT
1000 115 72 CONICAL
CHISEL
PYRAMID
BLUNT
1000 118 78 CONICAL
CHISEL
PYRAMID
BLUNT
1100 120 86 CONICAL
CHISEL
PYRAMID
BLUNT
1350 140 135 CONICAL
CHISEL
PYRAMID
BLUNT
410 40 4 CONICAL
CHISEL
PYRAMID
BLUNT
430 50 6 CONICAL
CHISEL
PYRAMID
BLUNT
510 50 7 CONICAL
CHISEL
PYRAMID
BLUNT
620 62 15 CONICAL
CHISEL
PYRAMID
BLUNT
720 75 20 CONICAL
CHISEL
PYRAMID
BLUNT
1100 122 90 CONICAL CHISEL PYRAMID BLUNT
1300 150 161 CONICAL CHISEL PYRAMID BLUNT
1380 150 170 CONICAL CHISEL PYRAMID BLUNT
1350 162 192 CONICAL CHISEL PYRAMID BLUNT
1400 170 200 CONICAL CHISEL PYRAMID BLUNT
1520 170 250 CONICAL CHISEL PYRAMID BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
480 45 5 CONICAL
CHISEL
PYRAMID
BLUNT
580 57 10 CONICAL
CHISEL
PYRAMID
BLUNT
620 65 15 CONICAL
CHISEL
PYRAMID
BLUNT
710 75 21 CONICAL
CHISEL
PYRAMID
BLUNT
780 90 32 CONICAL
CHISEL
PYRAMID
BLUNT
860 96 50 CONICAL
CHISEL
PYRAMID
BLUNT
922 106 57 CONICAL
CHISEL
PYRAMID
BLUNT
1000 116 72 CONICAL
CHISEL
PYRAMID
BLUNT
1050 115 80 CONICAL
CHISEL
PYRAMID
BLUNT
1100 126 93 CONICAL
CHISEL
PYRAMID
BLUNT
1100 126 93 CONICAL
CHISEL
PYRAMID
BLUNT
1300 140 145 CONICAL
CHISEL
PYRAMID
BLUNT
1200 136 127 CONICAL
CHISEL
PYRAMID
BLUNT
1300 146 158 CONICAL
CHISEL
PYRAMID
BLUNT
1300 155 160 CONICAL
CHISEL
PYRAMID
BLUNT
1400 165 180 CONICAL
CHISEL
PYRAMID
BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
601 61 13

CONICAL

CHISEL

PYRAMID

BLUNT

700 85 26

CONICAL

CHISEL

PYRAMID

BLUNT

950 110 68

CONICAL

CHISEL

PYRAMID

BLUNT

1100 122 88

CONICAL

CHISEL

PYRAMID

BLUNT

1200 130 105

CONICAL

CHISEL

PYRAMID

BLUNT

1300 140 140

CONICAL

CHISEL

PYRAMID

BLUNT

1400 150 170

CONICAL

CHISEL

PYRAMID

BLUNT

1600 168 220

CONICAL

CHISEL

PYRAMID

BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
530 53 7 CONICAL
CHISEL
PYRAMID
BLUNT
480 45 9 CONICAL
CHISEL
PYRAMID
BLUNT
680 63 15 CONICAL
CHISEL
PYRAMID
BLUNT
730 70 21 CONICAL
CHISEL
PYRAMID
BLUNT
750 70 20 CONICAL
CHISEL
PYRAMID
BLUNT
850 90 34 CONICAL
CHISEL
PYRAMID
BLUNT
900 110 55 CONICAL
CHISEL
PYRAMID
BLUNT
1050 115 79 CONICAL
CHISEL
PYRAMID
BLUNT
1100 129 103 CONICAL
CHISEL
PYRAMID
BLUNT
1200 140 137 CONICAL
CHISEL
PYRAMID
BLUNT
1200 140 137 CONICAL
CHISEL
PYRAMID
BLUNT
1200 160 173 CONICAL
CHISEL
PYRAMID
BLUNT
1300 170 215 CONICAL
CHISEL
PYRAMID
BLUNT
1060 106 76 CONICAL
CHISEL
PYRAMID
BLUNT
1060 115 78 CONICAL
CHISEL
PYRAMID
BLUNT
1100 130 95 CONICAL
CHISEL
PYRAMID
BLUNT
1300 140 137 CONICAL
CHISEL
PYRAMID
BLUNT
1400 160 220 CONICAL
CHISEL
PYRAMID
BLUNT
1450 170 230 CONICAL
CHISEL
PYRAMID
BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
480 45 5

CONICAL

CHISEL

PYRAMID

BLUNT

600 65 13

CONICAL

CHISEL

PYRAMID

BLUNT

740 70 19

CONICAL

CHISEL

PYRAMID

BLUNT

900 80 27

CONICAL

CHISEL

PYRAMID

BLUNT

1000 101 52

CONICAL

CHISEL

PYRAMID

BLUNT

965 115 68

CONICAL

CHISEL

PYRAMID

BLUNT

1220 140 144

CONICAL

CHISEL

PYRAMID

BLUNT

1500 167 237 CONICAL CHISEL PYRAMID BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN

OVERALL
LENGTH
(mm)

BODY
DIAMETER
(mm)

WEIGHT
(Kgs)

TOOL END

500

50

5

CONICAL

CHISEL

PYRAMID

BLUNT

590

58

11

CONICAL

CHISEL

PYRAMID

BLUNT

710

75

20

CONICAL

CHISEL

PYRAMID

BLUNT

800

95

40

CONICAL

CHISEL

PYRAMID

BLUNT

930

115

70

CONICAL

CHISEL

PYRAMID

BLUNT

1170 135 115

CONICAL

CHISEL

PYRAMID

BLUNT

1200

145

136

CONICAL CHISEL PYRAMID BLUNT

* Any Korean brands and other brands are available upon request



SUITABLE FOR USE IN OVERALL
LENGTH
(mm)
BODY
DIAMETER
(mm)
WEIGHT
(Kgs)
TOOL END
1200 135 110

CONICAL

CHISEL

PYRAMID

BLUNT

1200 135 110

CONICAL

CHISEL

PYRAMID

BLUNT

1250 150 158

CONICAL

CHISEL

PYRAMID

BLUNT

Products

SEOUL, KOREA HEADQUARTERS



TEL : 82-10-3792-9928
FAX : 82-32-612-6888
E-MAIL : ykchang@chol.com

ykchang4578@naver.com

SEOUL, KOREA (HEADQUARTERS)
TEL : 82-10-3792-9928
FAX : 82-32-612-6888
E-MAIL : ykchang@chol.com

               ykchang4578@naver.com

Homepage : www.tigerbreaker.com
                     www tigerhammer.com

CHINA OFFICE : GUANGZHOU TIGER HYD-MAC CO., LTD

Guangzhou Office  / Sales Office
ADDRESS :  NO.210 2ND STREET ZHUJI INTERNATIONAL MACHINERY COMPLEX RD36 ZHUJI TIANHE DISTRICT , GUANGZHOU CITY, ZIP510600 CHINA
TEL : 020-8211-0998  /  FAX : 020-8211-0968 / MOBILE : 13503099964
CONTACT : MR. CAO

Copyright ⓒ Korea Heavy Machinery Co., Ltd. All rights reserved
